RAK2245 Stamp Edition WisLink-LoRa Concentrator Module based on SX1301

RAK2245 Stamp Edition WisLink Concentrator Module for LoRa® based on SX1301

by RAKWireless
£83.33 (Ex.VAT)
 -
£83.33 (Ex.VAT)
£83.33 (Ex.VAT)
£83.33 (Ex.VAT)
 -
£83.33 (Ex.VAT)
£83.33 (Ex.VAT)
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up for restock notifications

Notify Me

The RAK2245 is a complete and cost-efficient LoRa® gateway solution based on Semtech SX1301 to help utilize the whole LoRa® development system. Developers can integrate the concentrator module into the main board to utilize the LoRa® gateway function.

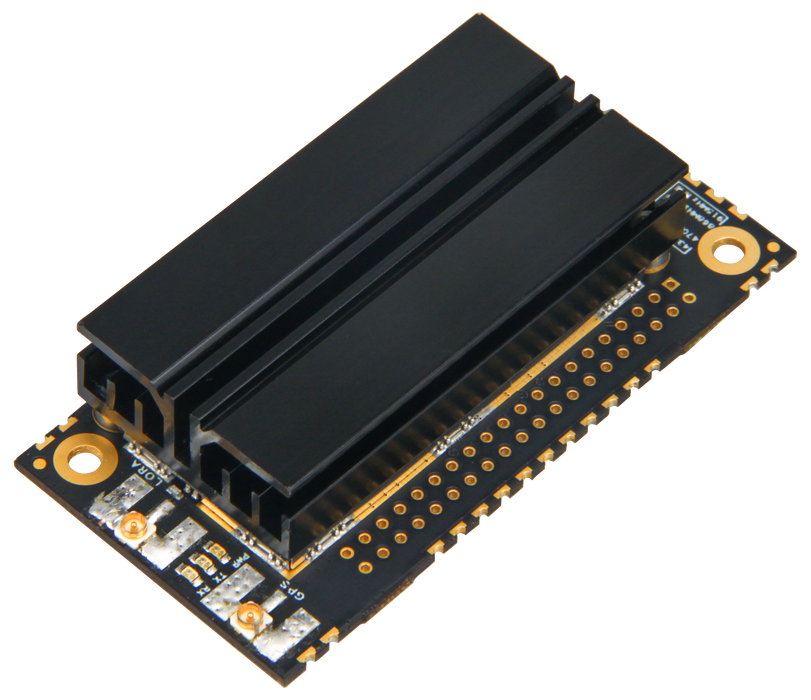

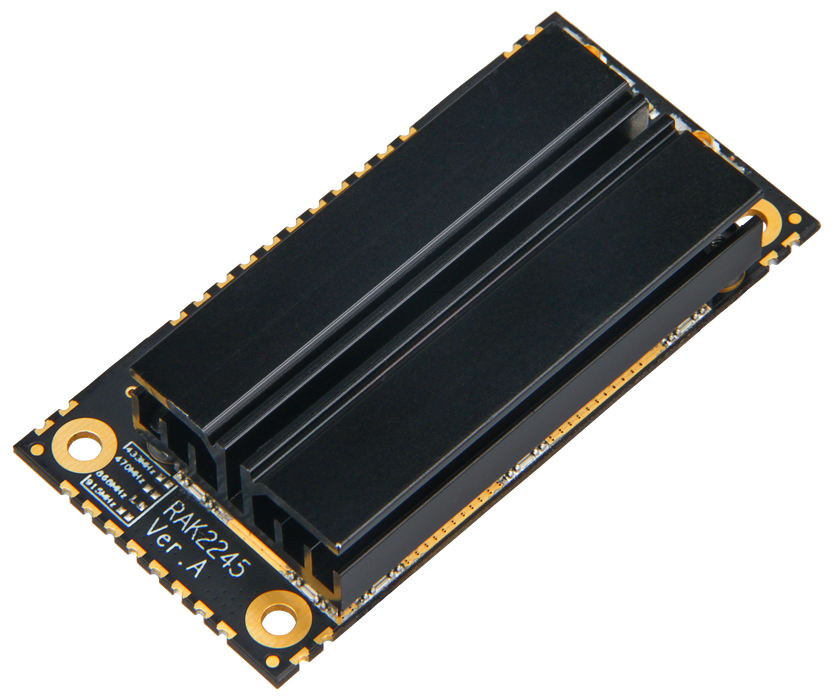

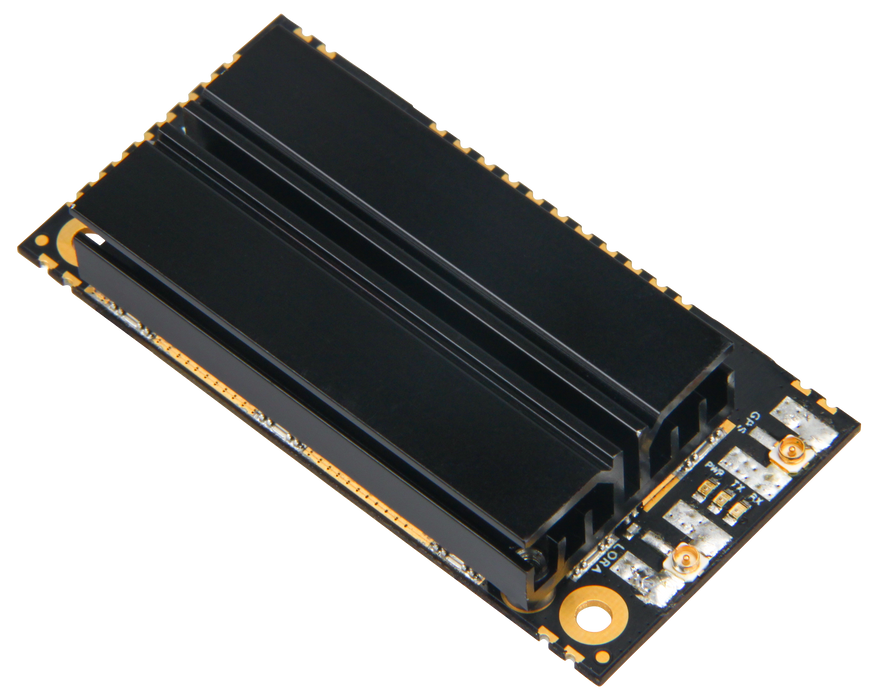

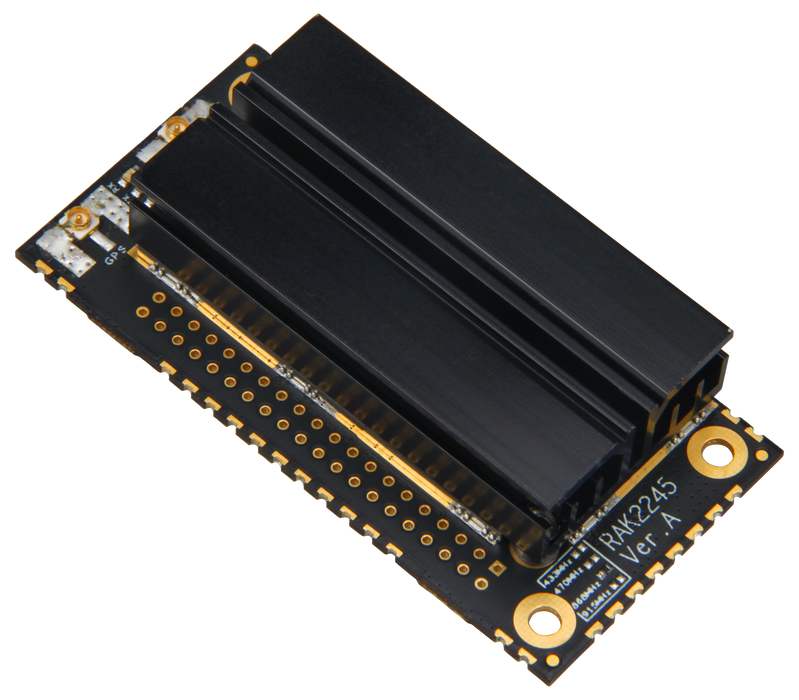

RAK2245 can support eight channels and is available in multiple variants so it can be used for international standard bands. This ultra-compact module measures just 60mm x 30mm x 14.9mm is believed to be the world's smallest LoRaWAN® gateway module which includes a GPS module and a heatsink for better performance and thermal heat dissipation management.

This has to be the best value and function for connectivity to address a variety of applications like smart grid, intelligent farming, and other IoT enterprise applications. Combined with a stamp form factor, which enables easy integration into an application board and also ideal for manufacturing of small series. Another feature is the integration of Ublox GPS module which expands applications.

RAK2245 Stamp Edition is a WisLink-LoRa Concentrator Module based on SX1301,Pre-install LoRa gateway OS

Main Features

  • Compatible with Stamp edition specification with heatsink
  • SX1303 base band processor emulates 49 x LoRa® demodulators parallel demodulation paths, supports 8 uplink channels, 1 downlink channel.
  • 2 x SX125x Tx/Rx front-ends high/low frequency
  • Supports 5V power supply. Integrated level conversion circuit.
  • TX power up to 27dBm, RX sensitivity down to -139dBm@SF12, BW 125KHz
  • Supports latest LoRaWAN® 1.0.2 protocol
  • Supports global license-free frequency band
    • EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865, and AS920
  • Supports SPI interface

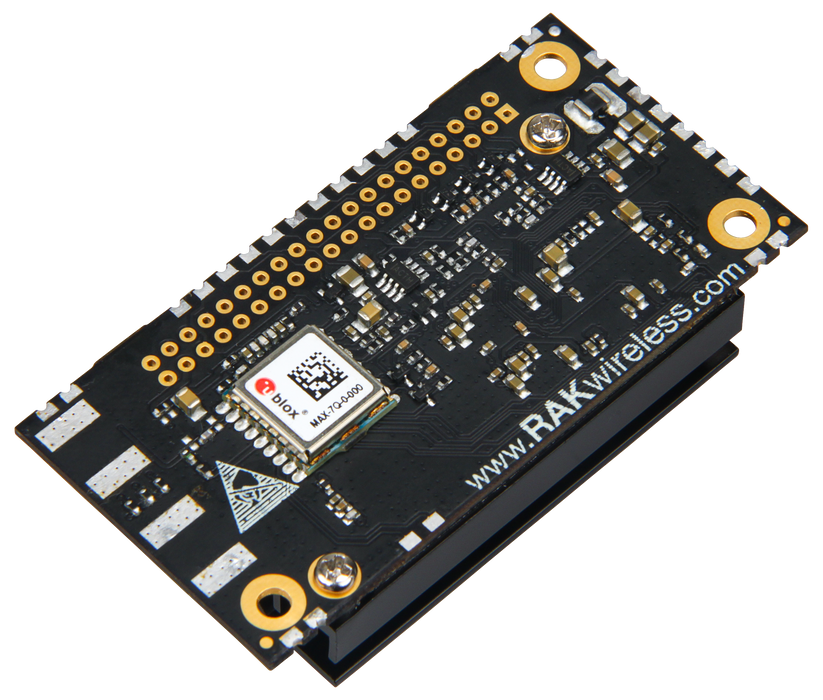

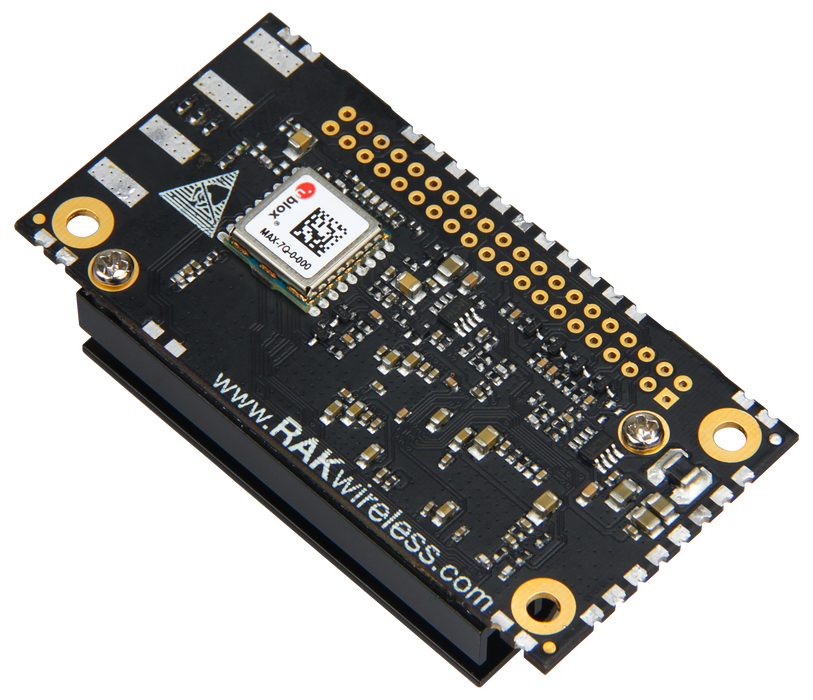

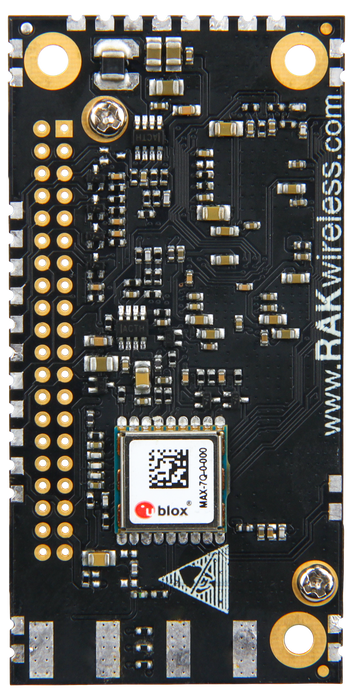

  • Integrated Ublox MAX-7Q GPS module

Pin Definition

RAK2245 Pin Definition

Block Diagram

Key Features

  • Concentrator Module: SX1301 base band processor (supports 8 uplink channels, 1 downlink channel)
  • GPS Module: Ublox MAX-7Q
  • Form Factor: Stamp Edition
  • Heat Sink: Metal
  • Frequency: EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865, and AS920
  • LoRaWAN Version: LoRAWAN V1.0.2
  • Range
    • Urban: 2 - 4KM
    • Suburb: 5 - 10KM
    • Open Area: 15KM
  • Node Numbers: 500 nodes/KM2
  • TX Power: 27dBm (Max), typical 25dBm
  • RX Sensitivity: -139dBm(Min) @ SF12, BW 125KHz
  • Power Supply: DC 5v
  • LEDs
    • 1 x Green LED fro PWR status
    • 1 x Green LED for TX status
    • 1 x Green LED for RX status
  • Interfaces: SPI, UART, GPIOs
  • Antenna Interface:
    • 1 x UFL connectors for LoRa®
    • 1 x UFL connectors for GPS
  • Power Consumption
    • TX (Max): 182 mA
    • RX (All channels): 360 mA
  • Working environment: Indoor/outdoor
  • Dimensions (L x W x H): 30mm x 60mm x 14.9mm
  • Weight: 0.75oz
  • Temperature Range
    • Normal Operation Temperature: -20 to 65
    • Extended Temperature: -40 to 85
    • Storage Temperature: -40 to 85
  • Compliance: FCC / CE
