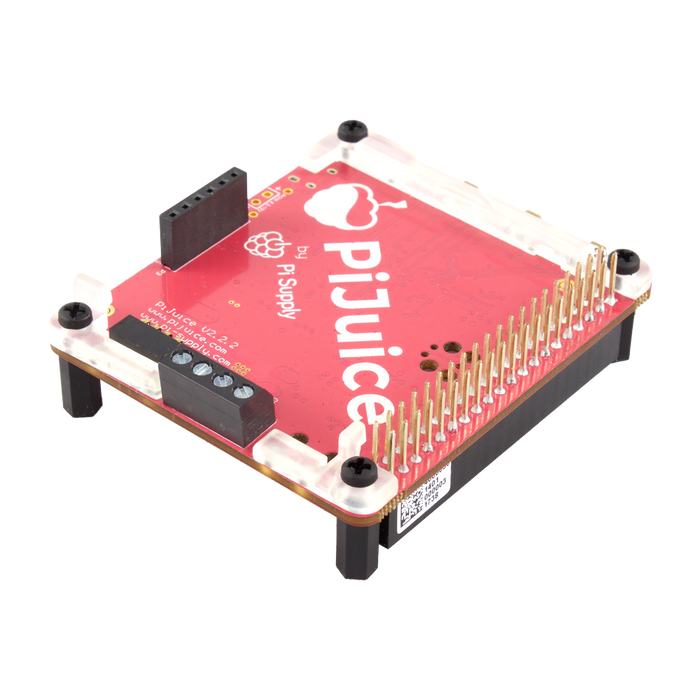

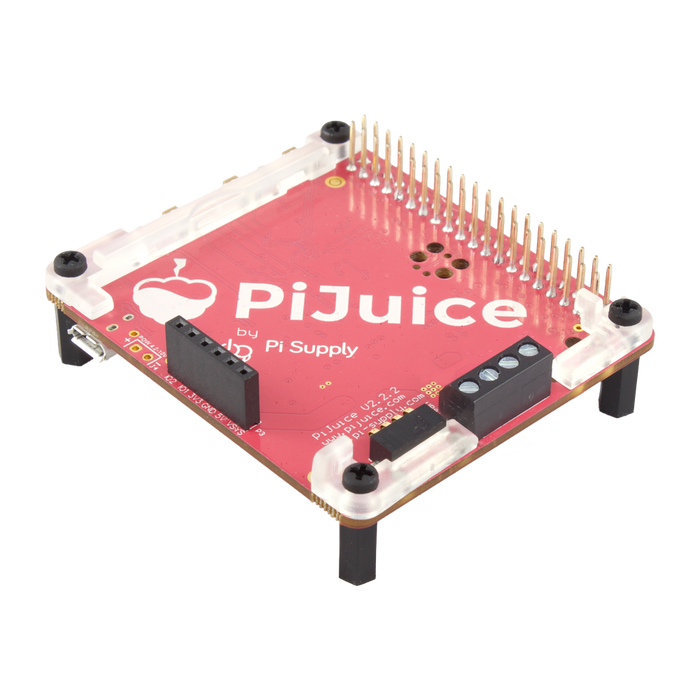

PiJuice HAT - A Portable Power Platform For Every Raspberry Pi
The PiJuice HAT is a revolutionary Raspberry Pi power supply that elevates your project's potential to new heights. Designed as a comprehensive power management module for Raspberry Pi, it seamlessly integrates battery management and provides an uninterruptible power supply (UPS), ensuring your project runs smoothly even in the event of a power outage.
As a Raspberry Pi power control, the PiJuice HAT offers advanced features for managing and optimizing power usage. This intelligent device adapts to your Raspberry Pi's power needs, making it an essential tool for power optimisation for Raspberry Pi projects.
Offering portability without compromising performance, the PiJuice HAT is a portable power for Raspberry Pi solution. Whether you're working on a mobile project or need a reliable power source during travels, this module ensures your Raspberry Pi never runs out of juice.
With the PiJuice HAT, you also gain a robust Raspberry Pi battery backup. Even in power-critical applications, your Raspberry Pi will continue to function, thanks to the reliable and efficient backup power provided by the PiJuice.
Our revolutionary PiAnywhere technology contained in every PiJuice HAT - is the best way to take your Pi off the grid! The real time clock (RTC) on board will let your Pi know what time it is even with no power input or internet connection. Alongside this is an integrated microcontroller (MCU) chip which will manage soft shut down functionality and a true low power deep sleep state and intelligent startup.
You will be able to always keep track of the charge levels and other info with the two built-in tri-coloured RGB LEDs, trigger events and scripts with the three programmable buttons and since the PiJuice will use up to just five of your GPIO pins (just power and I2C), the rest are free to diversify your project. The stacking header allows you to continue to use your existing HATs and add-ons with PiJuice.
Keep your Raspberry Pi running with solar, wind and other renewable power.Ultimate integrated power is one thing but what if we could make the Raspberry Pi renewably powered too? Solar, wind, thermoelectric and other renewable power is free, clean, and green and we're proud to have developed an affordable and efficient renewable power solution for the Raspberry Pi! PiJuice is self-monitoring and, like a space satellite, can become a completely autonomous system. Use the PiJuice as part of an autonomous camera system, weather stations, off-grid desktops, and so many other great outdoor projects. View and buy the PiJuice solar panels separately here.
- Onboard 1820 mAh off the shelf Lipo / LiIon battery for ~4 to 6 hours in constant use! (with support for larger Lipo Battery of 5000 or 10,000 mAH+ to last up to 24 hrs +)
- A Full Uninterrupted / Uninterruptible Power Supply (UPS) solution.
- Designed for the Raspberry Pi A+, B+, 2B, 3B, 3B+, Raspberry Pi Zero v1.3 Raspberry Pi Zero Wireless, and any other Raspberry Pi with 40 GPIO pins.
- Integrated Real Time Clock
- Onboard intelligent on/off switch
- Low power deep-sleep state with wake on interrupt/calendar event
- Programmable multi-colored RGB led (x2) and buttons (x3) with super simple user-configurable options
- Hardware watchdog timer to keep your Raspberry Pi on and working in mission-critical remote applications
- Our revolutionary PiAnywhere technology - the best way to take your Pi off the grid!
- Full power management API available to Raspberry Pi OS with auto shutdown capability when running low on batteries
- Raspberry Pi HAT compatible layout, with onboard EEPROM for easy plug and play operation
- Low profile design to fit inside lots of existing Raspberry Pi cases!
- Enhanced graphical user interface (GUI) available for easy install (via APT)
- Customisable scripts for enhanced flexibility and full report of battery status
- All GPIOs available via stackable header for ease of expandability and connectivity
- Charge via on-board micro USB or via the Raspberry Pi micro USB (or from onboard pin headers)
- Batteries can be charged from different type of sources and voltages
- Replace the battery without downtime. Compatible with any single cell LiPo or LiIon battery
- Fully CE and FCC tested design. Battery safety tested also.
Need a bigger battery? Then check out some of the alternatives that we stock:
- PiJuice 12,000mAh Battery
- PiJuice 5,000mAh Battery
- 1600 mAh Smartphone Battery - Compatible with PiJuice
- 1300 mAh Smartphone Battery - Compatible with PiJuice
- The EEPROM can be disabled and its I2C address changed for increased compatibility with other boards

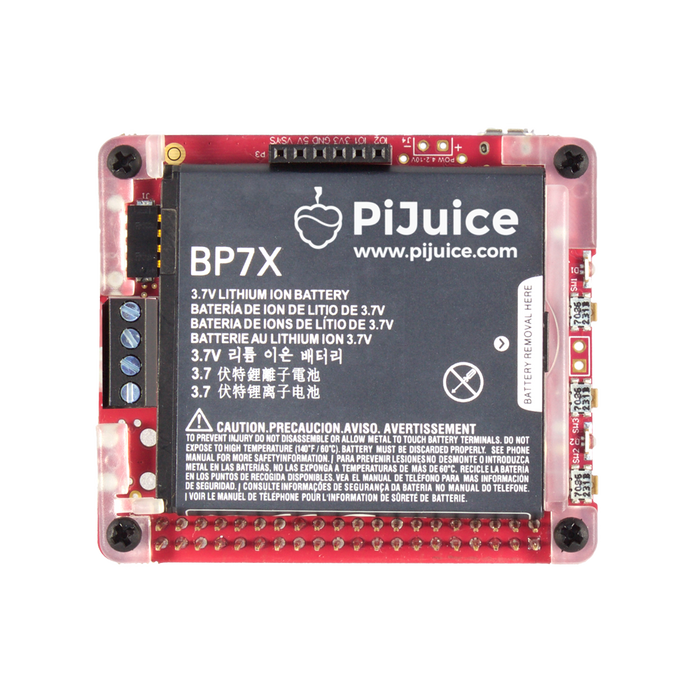

- BP7X battery - original battery from Motorola Droid 2 (A955) - 1820mAh battery
- Microcontroller is an ST Micro STM32F030CCT6 ARM Cortex-M0, 48MHz, F64KB, R8KB, I2C, SPI, USART, 2.4-3.6V
- Charge IC - BQ24160RGET Charger IC Lithium-Ion/Polymer, 2.5A, 4.2-10V
- Fuel gauge IC - LC709203FQH-01TWG Battery Fuel Gauge, 1-Cell Li-ion, 2.8%
- EEPROM - CAT24C32WI-GT3 EEPROM, I2C, 32KBIT, 400KHZ, 1V7-5V5
- Optional spring pin - Mil-Max 0929-7-15-20-77-14-11-0
- Compatible with any 4 pin battery on board that can be used with 00-9155-004-742-006 battery contacts from AVX including the BP7X, BP6X, and any compatible batteries including the 1600mAh and 2300mAh ones from CameronSino (CS-MOA853SL and CS-MOA855XL)

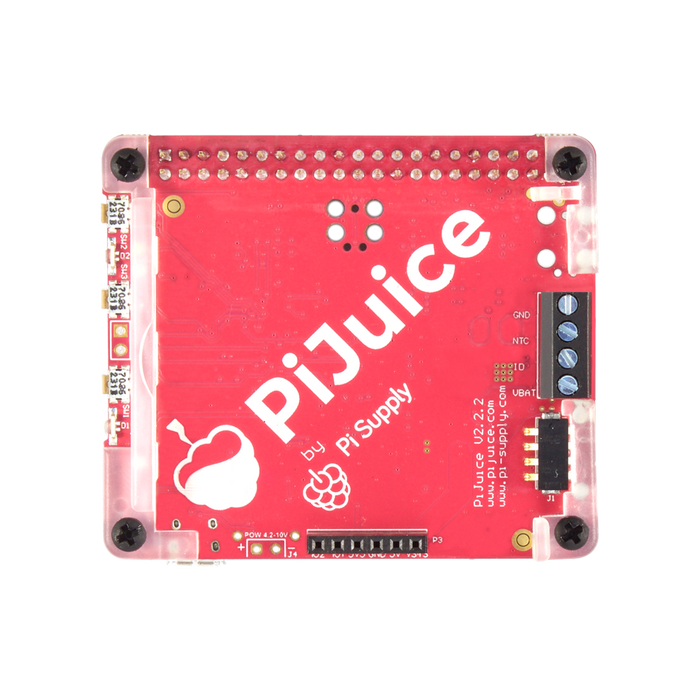

- There is an on board 4 pin screw terminal block for larger off board batteries. Any single cell LiPo / LiIon is compatible. However, you use your own sourced battery at your own risk. We HIGHLY RECOMMEND using a battery with an internal protection circuit and a NTC (temp sensor)
- Optional header for offboard button - connected to same output as SW1

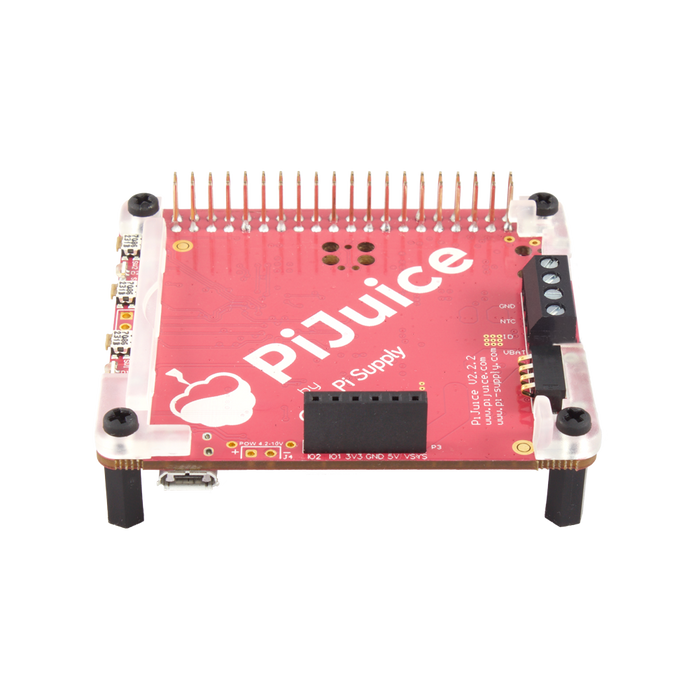

- 6 pin breakout header - with two GPIO from the ARM Cortex-M0, Vsys, 5v0, 3v3, GND connections
- Header for optional off board solar panel / wind turbine etc.
- Optional RF Shield attachment - Harwin S02-20150300 (can also double as an inexpensive heatsink)
- Input voltage range - 4.2V 10V
- Output voltage - 3.3V and 5V
- Output amperage - maximum current at 5V gpio is 2.5A and at VSYS output 2.1A, but also this depends heavily on battery capacity. For BP7X have measured around 1.1A at 5V GPIO and around 1.6A at VSYS output. Obviously, this also depends heavily on the current draw demanded by the Raspberry Pi/device itself. To achieve a maximum of 2.5A it will need battery over 3500mAh.
- Boxed weight - 96g
- Boxed dimensions - 12.2 x 10.8 x 3.5 cm
- Unboxed weight - 57g
- Unboxed dimensions - 6.5 x 5.6 x 2 cm

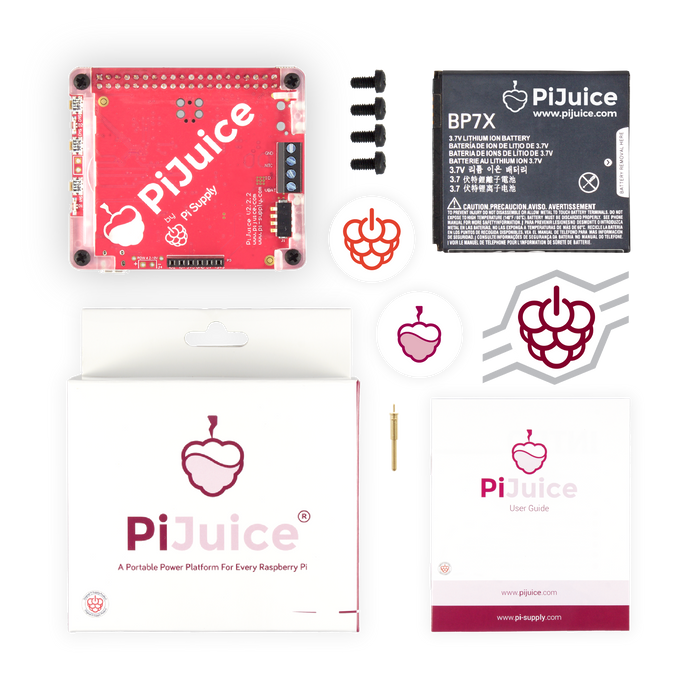

PiJuice HAT box contains
- 1 x PiJuice HAT
- 1 x Battery and battery surround
- 1 x PiJuice guide
- 4 x Mounting posts attached to PiJuice
- 8 x Mounting screws (4 are already assembled to the board)
- 3 x Stickers
PiJuice ProjectsWith PiJuice we want to provide not only the best portable hardware/software solution, but also a set of inspiring and affordable guided projects for fun and learning in the real world.
- Quick start guide & FAQ
- Remote camera systems
- Weather station
- Compact robot
- Portable pocket Pi
- DIY portable games console
- Point and shoot camera
- How to connect the Pi Supply PoE HAT to the PiJuice
- Discover more PiJuice projects
Software & Resources
- PiJuice GitHub
- Battery Safety Documents
- PiJuice User Guide
- PiJuice Battery Discharge Calculator
- How to save power on your Raspberry Pi
Q1: What is the PiJuice HAT? The PiJuice HAT is a Raspberry Pi power management module that offers an efficient and portable power solution for all Raspberry Pi models. It integrates battery management, power optimisation, and power control in a single device.
Q2: How does the Raspberry Pi power supply work in the PiJuice HAT? The PiJuice HAT serves as a Raspberry Pi power supply by providing a continuous source of power. It leverages advanced battery management for Raspberry Pi, ensuring your projects continue to run seamlessly even when the primary power source is unavailable.
Q3: Can the PiJuice HAT serve as a Raspberry Pi UPS? Yes, the PiJuice HAT acts as a Raspberry Pi UPS (Uninterruptible Power Supply). This means that in the event of a power outage, your Raspberry Pi will continue to function using the backup power provided by the PiJuice HAT.
Q4: Is the PiJuice HAT a portable power solution for Raspberry Pi? Absolutely! The PiJuice HAT is designed as a portable power for Raspberry Pi solution. This makes it perfect for mobile projects or situations where you need a reliable power source on the go.
Q5: How does the PiJuice HAT handle Raspberry Pi power control and power optimisation? The PiJuice HAT comes with advanced power control capabilities, enabling you to manage your Raspberry Pi's power usage effectively. Additionally, it's designed for power optimization for Raspberry Pi, allowing it to adapt to the power needs of your Raspberry Pi and ensuring energy efficiency.
Q6: Can the PiJuice HAT be used as a Raspberry Pi battery backup? Yes, the PiJuice HAT provides a reliable Raspberry Pi battery backup. This guarantees the continued functioning of your Raspberry Pi in power-critical applications, even when the primary power source is interrupted.
Remember, the PiJuice HAT is designed to provide a comprehensive power solution for your Raspberry Pi, combining portability, power control, battery management, and backup power in one device.
